Fastwarm High Output Water Underfloor Heating Kit
£400.00 – £1,096.00
Description
Fastwarm High Output Water Underfloor Heating Kit
Fastwarm High Output Single Zone systems are designed for use in one Zone (area) and come with only one thermostatic controller. The system is a single unit and its controlled from one thermostat zone. For multiple room or zone control we offer the a Multi Zone system.
Fastwarm Water Underfloor Heating systems are the homeowner and installers perfect choice. With several choices for thermostat control, the system offers great options for all.
Systems come with easy-to-follow installation guides and all pipework carries our lifetime warranty (50yr). Underfloor Heating Supplies have a technical team to help every step of the way!

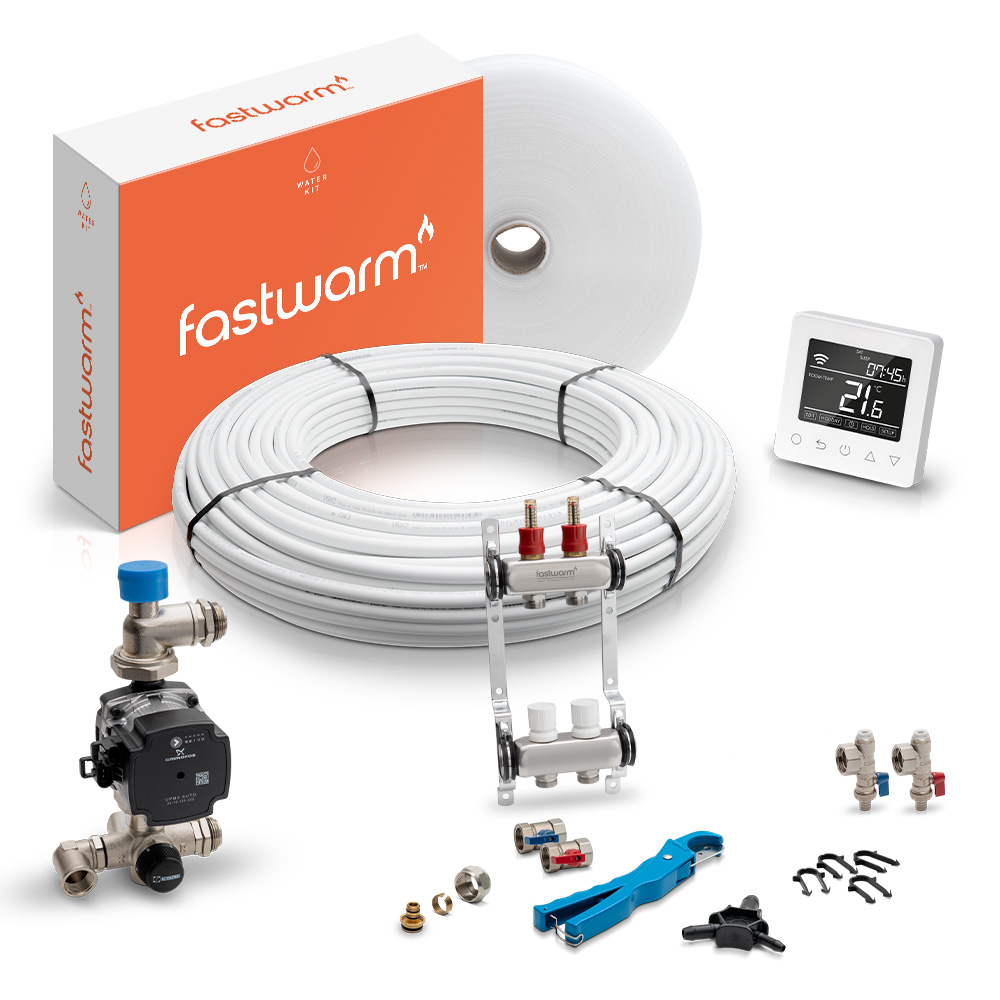

Fastwarm Water Kits include FastWarm branded products including pipework, pump, thermostats, and manifolds guaranteeing our seal of quality. This component brand control ensures the lifetime guarantee that comes with Fastwarm systems.
Important technical information
- Each port on the manifold will cover 20m2.
- You may require more ports in some rooms and in this case you may need a larger kit.
- Pipe is not provided to get to and back from the heat source.
- We always recommend purchasing a larger kit (going up one size) than you need for wastage.
- Space the pipe at 200mm centres.
-
Kit Size (m2) 10 12 14 16 18 20 22 24 30 40 50 60 70 80 Manifold Ports 1 1 1 1 1 1 1 1 2 2 3 3 4 4 Pipe Length ( metres) 50 60 70 80 90 100 110 120 150 200 250 300 350 400
We are here to help!
Please contact us on 01702 682 001 or [email protected] if you need help ordering,
A member from the sales team can always help and create a bespoke quote for you as your project may not be straight forward!
Additional information
| Size | 10㎡, 12㎡, 14㎡, 16㎡, 18㎡, 20㎡, 22㎡, 24㎡, 30㎡, 40㎡, 50㎡, 60㎡, 70㎡, 80㎡ |
|---|---|
| Option | DS1, neoStat Black, neoStat White, Slimline, Wifi Black, Wifi White |
Thermostat Options
Heatmiser DS1 Manual Thermostat
- Power On & Heat On Indication
- Modern Apperance
- Easily increase or decrease the required temperature
- Variable Switching Differential
- Outputs: Volt free 3A Max
| Dimensions | 92mm x 92mm x 34mm |
| Mounting | Surface mounting |
| Load | 230v |
Heatmiser Slimline Thermostat
- Large Display
- 5/2 Day or 7 Day Programming
- Self Learning Optimum Start
- 4 Comfort Levels per Day
- Temperature Hold Facility
- Holiday Facility
- Automatic Blue Back-Lit Display (Turns off after 30 seconds)
- Flush Mounting
- °C/°F Selectable
- Key Locking
- Frost Protection
- Remote Control Option
| Dimensions | 98mm x 85mm x 13mm |
| Mounting | Flush mounted |
| Load | 12v – volt free 3A Max |
Heatmiser NeoStat Thermostat
- Stunning design incorporating soft touch keys
- Non Programmable, 5/2 Day, 7 Day & 24 Hour programming modes
- Air, Air & Floor & Floor only sensing modes
- 5 minute program intervals
- Self learning optimum start
- 4 comfort level/ Times per day
- Holiday facility
- Automatic blue back light (turns off after 30 secs)
- Flush mounting
- °C/°F selectable
- Key Code facility
- Frost protection
Fastwarm Wifi
The Fastwarm Smart Wifi White Thermostat is used to control your Electric underfloor heating system.
This Thermostat pairs to your home WIFI using an application which is available from both Android and IOS platforms.
Once paired, you will be minimising energy use as well as having your home remain at a comfortable temperature.
- WIFI Control
- Programmable
- Professional design
- Hold function
- Floor Temperature Limitation
- Power Consumption Monitor (APP)
- Large Screen
| IP rating | IP21 |
| Max Load | 3A |
| Supply voltage | 230v |
